Updating the Gen2 XDAQ Firmware

Updating the Gen2 XDAQ Firmware

KonteX periodically releases new firmwares for bug fixes and new functionalities. Additional capabilities may be enabled if they were not selected in the initial purchase(e.g. adding the SR32 capability or Neuropixels support).

To update the firmware, plug-in the XDAQ to the computer and install the driver.  Download the firmware update tool from KonteX developer portal and run the executable.  Follow the prompt from the application to proceed.  The application will check KonteX server for the latest updates and download and install the firmware.
​

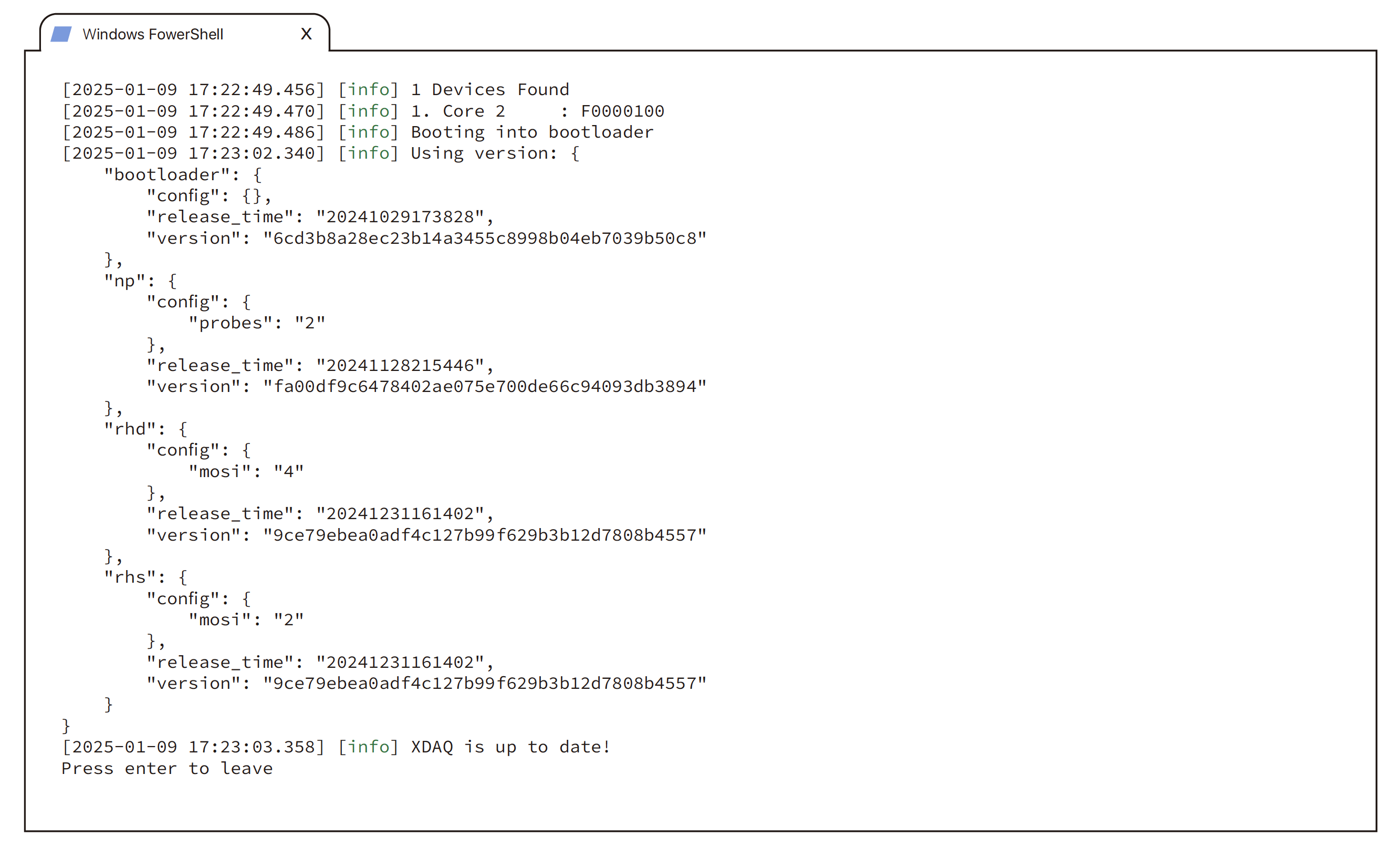

When XDAQ™ is up to date

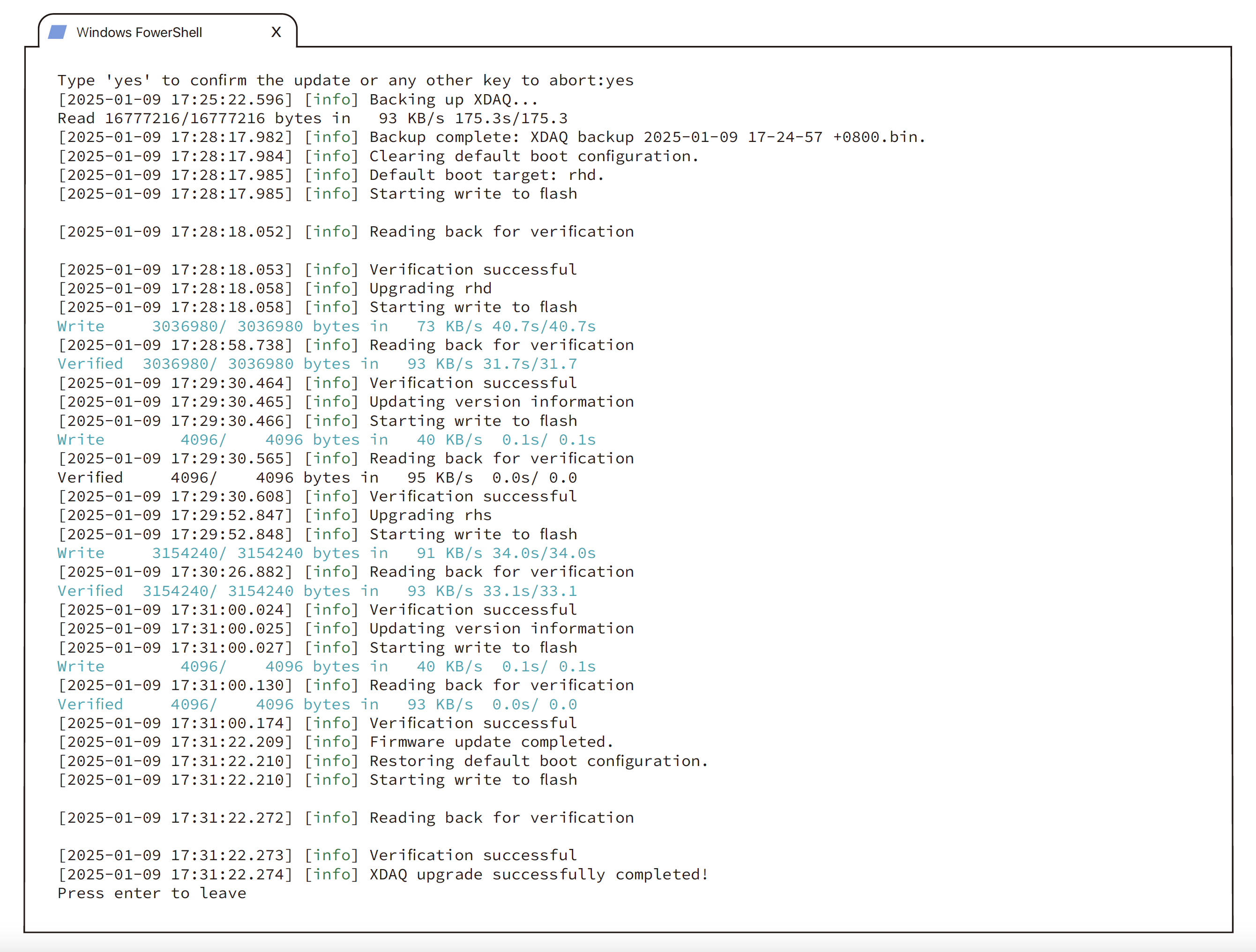

When new firmware is available for Gen2  XDAQ™

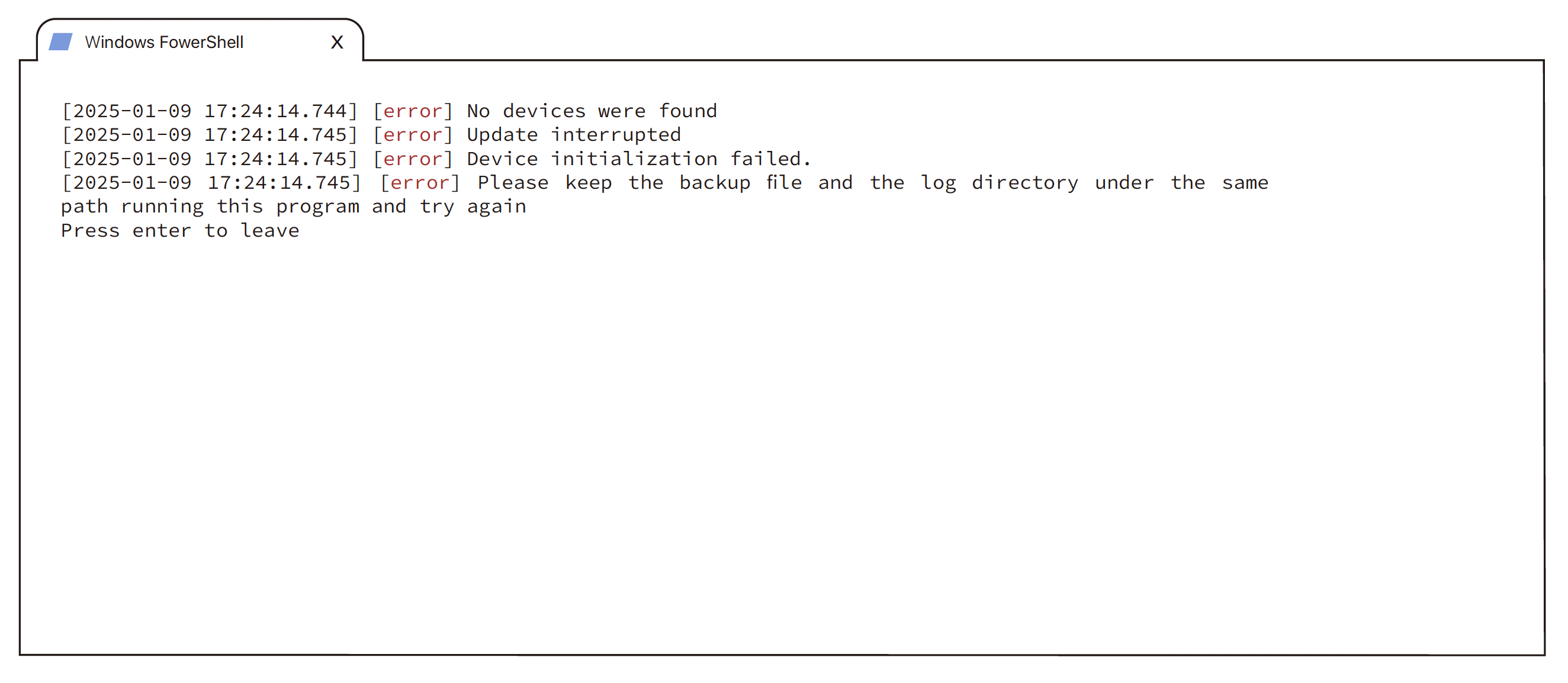

When XDAQ™ is not connected

Please make sure that the driver is installed and a Thunderbolt 3 or above cable is used.
